Hello I\'m diederik from Holland. I\'m new here and a friend of mine told me to post my project here.
The project began when I bought a destroyd DRD pro. Here are some pictures:

more photo\'s of this project: http://www.derbi-clu...opic.php?t=2000


Videos::

Old one:

http://www.youtube.c...feature=channel

frame work:




●Engine setup●
Metrakit Pro Race XL 77cc
Metrakit Pro Race exhaust *upper version* Metrakit GP80XL Copa with SCR black carbon cartouche
Barikit 43mm stroke crankshaft *balanced by De Jager
Conti CRX 2007 inlet V-force 3 et bac Cr85
28mm MRD PWK carburator
Polini 5 plates clutch with MHR reinforced springs
alumage: HPI 2006 Race ignition Boxitech digital
Transmission: 14/53
Twin air power filter

●Esthétique ●

Cadre de Derbi Senda X-treme
Jantes de DRD Pro
Marzocchi fourche de DRD Pro
bras oscillant alu de DRD pro
amortisseur de DRD Pro
carénage de DRD Pro
système de frein avant: DRD Pro *red* Kawasaki Rx750 brake pump
système de frein arriére: DRD Pro *red*
ASAP Fatbar with raisers
Koso RXN1
Plaque de Yamaha YZ125


The photo\'s of the project

The drd pro, wrecked by a autobus





the broken frame:



here is a photo of the derbi senda that I already had:



My plan was to transfer all the brakes, frontsuspension, swing arm and all the plastic

This is the plan:




here are the photo\'s of the process:













these two are going to become 1:



painted the brakes



frontsuspension












[28-05-08]

package from dam-sport

Pro race XL 77cc
barikit 43mm vilo
polini 5-plates



Conti CRX 2007

http://i682.photobuc...1010271.jpg/img] MRD PWK 28mm Carbu: [img]http://i682.photobucket.com/albums/vv182/metrakitprorace/Fotos-0009.jpg

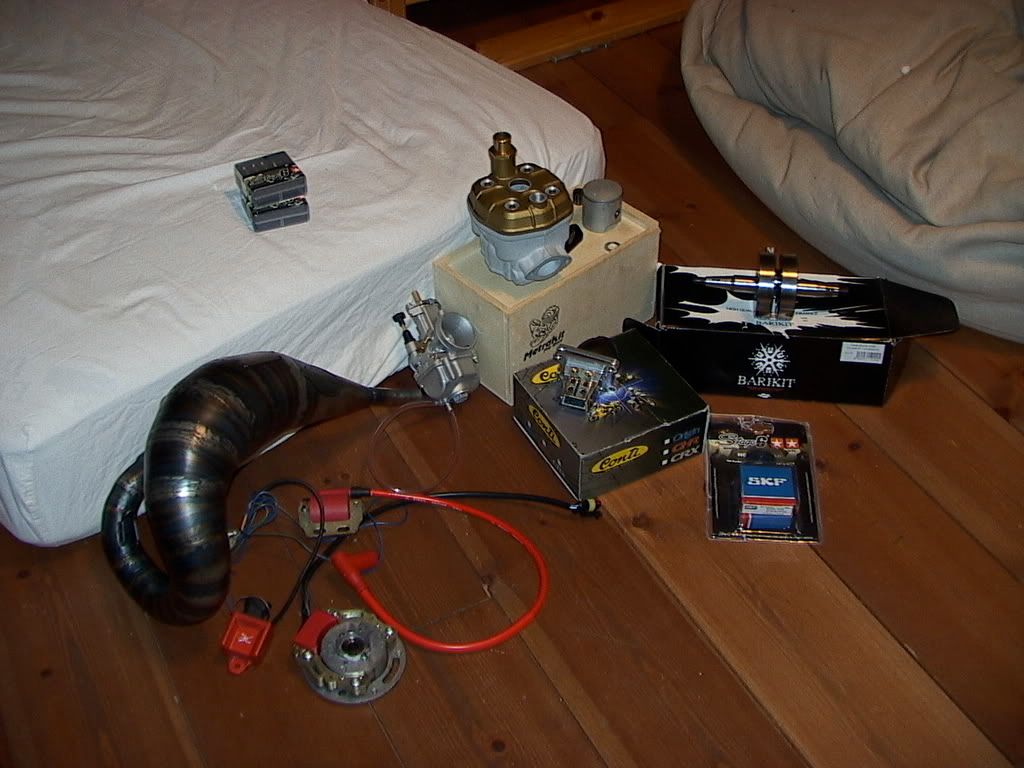

setup:
Pro race XL cilinder
pro race exhaust
polini clutch
HPI innerrotor ignition
conti CRX 2007 inlet
28mm Mrd carb



update (21 04 2008]

Swing arm, it is a bit to high









ASAP fatbar and raisers















from chrome too matt black



Then it looked like this for 2 weeks



[01-06-2008]

Frame modified so that the drd pro plastic fits:







update: [11-06-2008]

these two combined to make one seat:



















[09-07-2008]

then it was time to modify the front plastics:





I\'m sorry for the bad photo quality



fill up this gap





Almost ready for paint



total look



Derbi Senda X-treme Pro



(16-07-2008 )

finished the other side





30min later





[30-09-2008]
replaced the key



then it was time for the engine







carters tuned





Pro race xl 77cc
barikit 43mm stroke
Conti CRX 2007
Pro race exhaust
polini 5 plates clutch
HPI innerrotor race ignition





[4-8-2008]

I\'ve always wanted to make a pro link system but the drd pro system was really hard to make that fit, so I had made this:



and now it fits perfect







Update [3-9-2008]

Just received a Nissin front brake pump. Just need to make a bracket for the recevoir en polish the lever.



compleet handlebars with tomaselli Quick-action and new clutch lever and killswitch



clutch lever with killswitch





update 5-9-2008

Frame and pro link back from powdercoat









some better pictures:









Now I need some new bearings for my frontwheel and new tyres



[22 - 9 -2008]

it is coming together really slow, but i\'m trying to do everything perfect









just fits





with the pro race exhaust





short video of the first start, it doesn\'t run perfectly jet

[url="http://\"http://nl.youtube.com/watch?v=sZlFXqPKSH0\""][/url]


UPDATE 28-10-2008

sorry for the bad pictures, soon I will make some witch good light





a better picture, don\'t mind the mess;)


better pictures, i\'m getting a new set of drd pro plastics next week







Update 24 dec 2008

I finaly have mine new rear plastics

Here the are with my old front plastics because the drd pro front plastic is still in the making



here with the almost finished front plastics




sorry for the bad pictures, There will be better pictures tomorow

better pictures:





















video:

clutch slips alot on the high revs and air/fuel ratio isn\'t good either

<object width="425" height="350"><param name="movie" value="http://www.youtube.com/v/W53JIK67YdE"></param><param name="wmode" value="transparent"></param><embed src="http://www.youtube.com/v/W53JIK67YdE" type="application/x-shockwave-flash" wmode="transparent" width="425" height="350"></embed></object>

02-02-2009

here with the drd pro front plastics. I\'ve painted them black real quick just to see how it looks. I think it look alot better than the x-treme plastics. What\'s your opinion?



to check the difference






Dunlop slicks:







Drd pro front plastics are going to be high-gloss black with white stickers









V-force 3





Update 24-04-2008
Bye bye drd pro plastics




















I need some DRD Pro front plastics and the drd pro subframe comes next week.





Xrace38 : can you find out how much it cost to send a package too France please? thanks

Update 15-05-2009

Dam-sport XL







the silencer (cartouche) is already sold. Next week I'll get my Bidalot black carbon cartouche

The only problem is that my exhaust does not fit because it is hitting the Pro-link systeem. So I need to make some modifications too the mounting points of the exhaust.

I've cut this away






Now this is the only problem


I've already have a couple of solutions. It will be good

little photo sesion:







31-05-2009

I'm doing my final exams ("bac") now, so I don't have a lot of time. Hopefully there will be a big update next saturday.

Here is an other photo with my dunlop slicks tires installed









[2 march 2010]

i'm sorry long time no update, painter is very slow and there is dust everywhere


The reason is that i'm still waiting for my plastics.
The guy that was going to paint my plastics is very slow is not responding at all. So I could not continu with my frame.

But I have did some other small stuff and here is the update too let you guys know that I am still alive

the new garage:


The new digital Boxitech ignition:




.
The new vforce3 (sx65) because the CR85 was to big. The intake of euro3 is smaller than euro2




I've have prepared my carters, they will come back from sandblasting tommorow

And I found THE perfect airtube







A other DRD Pro swing arm from sweden (looks better than the old one)





New stickers for my front fork, came from america




New package from dam-sport, mk minigp radiator and SCR Carbon silincer.








SETUP 2010
-Metrakit Pro race XL
-Barikit 43mm stroke crankshaft. Balanced by "De jager"
-Metrakit copa GP exhaust
-Polini 5 plate clutch with reinforced MHR springs
-Mrd 28mm carb with twin air
-Vforce 3
-Cr85 intake
-Boxitech digital ignition

really quick some extra photos.





new sticker on my YZ125 cross plaque









Udpate may 19

New barpad, clutch- and brake lever
I think it looks much better now

old


new


update 11-06-2010

update on the frame, c'est fini





and a little video just for fun.



more too come

I hope you like it

Ce message a été modifié par d.m. - 11/06/2010 - 23:42.

[blast067]

omg so wonderful !!!!!!!! big work and its so beautiful

all big project are in holland, oh my god i love this country

Ce message a été modifié par blast067 - 01/09/2008 - 23:44.

[Tombrom]

blast067, le 02/09/2008 à 0:36, dit :

omg so wonderful !!!!!!!! big work and its so beautiful

all big project are in holland, oh my god i love this country

And we think this by the france projects.

like this page. http://www.e-magin.n...wtopic.php?t=58 all france derbi`s

and diederik it will be nice. and i wanna drive this bike

when my project is startet i will post it here.

[blast067]

yeah french are some good ideas , but you are so NEWS BIG PROJET

drd pro / xtrem are so

[Tombrom]

blast067, le 02/09/2008 à 0:58, dit :

yeah french are some good ideas , but you are so NEWS BIG PROJET

drd pro / xtrem are so

We have some people who makes big projects. but most of all dutch quit after a paint job.

the big projects will post her about this is a fantastic forum.

And my english is not very well so i`m sorry about that

[blast067]

Tombrom, le 02/09/2008 à 1:10, dit :

We have some people who makes big projects. but most of all dutch quit after a paint job.

the big projects will post her about this is a fantastic forum.

And my english is not very well so i`m sorry about that

euhhh and me , my english is so bad but i understand you

yeah it's a fantastic forum , i crazymoto !

holland are not derbi forum ?

++

[drd-ed'-79]

hi

very nice job

good luck guys

[blast067]

all guys in holland buy bridgestone sticker for the swin garm it's so funny to see it

[d.m.]

thanks everyone for the comments

we have www.derbi-club.net in the netherlands

btw, hopefully I get my frame back from powdercoating on friday

Ce message a été modifié par d.m. - 02/09/2008 - 09:19.

[jojejo38450]

whao good job

[top-road]

Originale projets

[Tombrom]

blast067, le 02/09/2008 à 1:14, dit :

euhhh and me , my english is so bad but i understand you

yeah it's a fantastic forum , i crazymoto !

holland are not derbi forum ?

++

we have www.derbi-club.net and www.brommerforum.nl

but there are mach jealous people there. and say allone what they didn`t like.

and the most of franch people don`t do that what i see. dats make post of a project nicer

['tit XR6]

xtrem + drd pro ===> xtrem pro is a very good idea

it's really a beautiful project

[d.m.]

'tit XR6, le 02/09/2008 à 10:51, dit :

xtrem + drd pro ===> xtrem pro is a very good idea

it's really a beautiful project

Thank you very much

[.:florent:.]

Very beautiful

[nonorider76]

Very Good project This derbi is very very beautifull

Ce message a été modifié par nonorider76 - 02/09/2008 - 16:26.

[Greg051]

Very, very good project

C U Soon

[OnLy_KeKeTTe]

It's very crazy!! You had make a very good work!
Congratulation !!

[Dorgelo]

Such a nice bike!

Died goed dat je hem er even op hebt gezet! nu nog ff van je blok

x

[d.m.]

thanks for all the comments

I forgot this picture



Pro race xl 77cc
barikit 43mm stroke
Conti CRX 2007
Pro race exhaust
polini 5 plates clutch
HPI innerrotor race ignition

Ce message a été modifié par d.m. - 02/09/2008 - 18:23.
